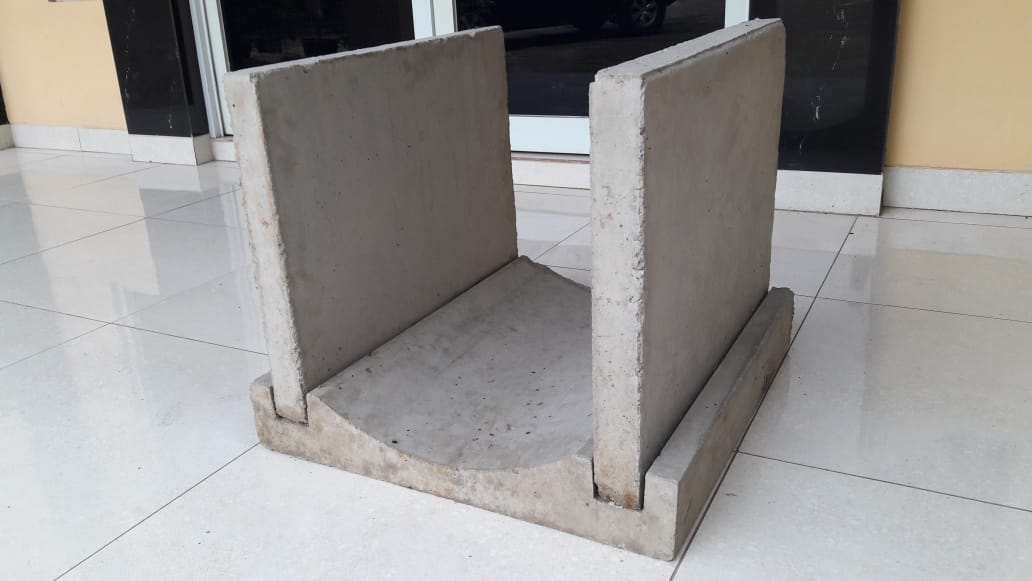

U-Ditch

U-Ditch

Type

 Dimension(mm) Weight

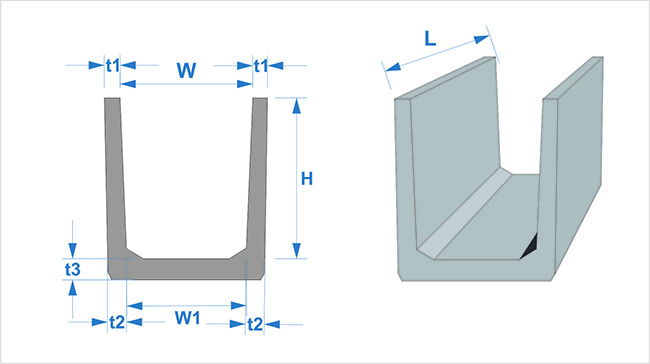

w h w1 t1 t2 t3 L

kg/pcs
U 30x30x120 300 300 260 45 65 65 1200 183
U 30x40x120 300 400 260 45 65 65 1200 216
U 30x50x120 300 500 260 45 65 65 1200 247

U 40x30x120 300 300 350 45 70 70 1200 214
U 40x40x120 300 400 350 45 70 70 1200 248
U 40x50x120 300 500 350 45 70 70 1200 281
U 40x60x120 500 600 350 45 70 70 1200 315

U 50x50x120 500 500 470 60 75 75 1200 349
U 50x60x120 500 600 470 60 75 75 1200 388
U 50x70x120 500 700 470 60 75 75 1200 429

U 60x60x120 600 600 570 60 75 75 1200 409
U 60x70x120 600 700 570 60 75 75 1200 447
U 60x80x120 600 800 570 60 75 75 1200 487

U 80x80x120 800 800 750 60 85 85 1200 585
U 80x90x120 800 900 750 60 85 85 1200 627
U 80x100x120 800 1000 750 60 85 85 1200 670

U 100x100x120 1000 1000 950 75 100 100 1200 926
U 100x120x120 1000 1200 940 70 100 100 1200 1012

U 120x120x120 1200 1200 1120 75 115 115 1200 1209
U 120x140x120 1200 1400 1120 75 115 115 1200 1326

U 140x140x120 1400 1400 1320 110 150 150 1200 1859
U 140x160x120 1400 1600 1320 110 150 150 1200 2012

U 150x150x120 1500 1500 1400 110 160 160 1200 2076

U 160x160x120 1600 1600 1500 115 165 165 1200 2286

U 180x180x120 1800 1800 1700 120 170 170 1200 2645

U 200x200x120 2000 2000 1870 125 190 190 1200 3217
