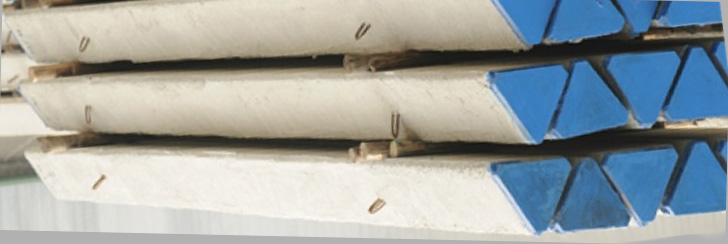

Precast Mini Pile
|
Type |

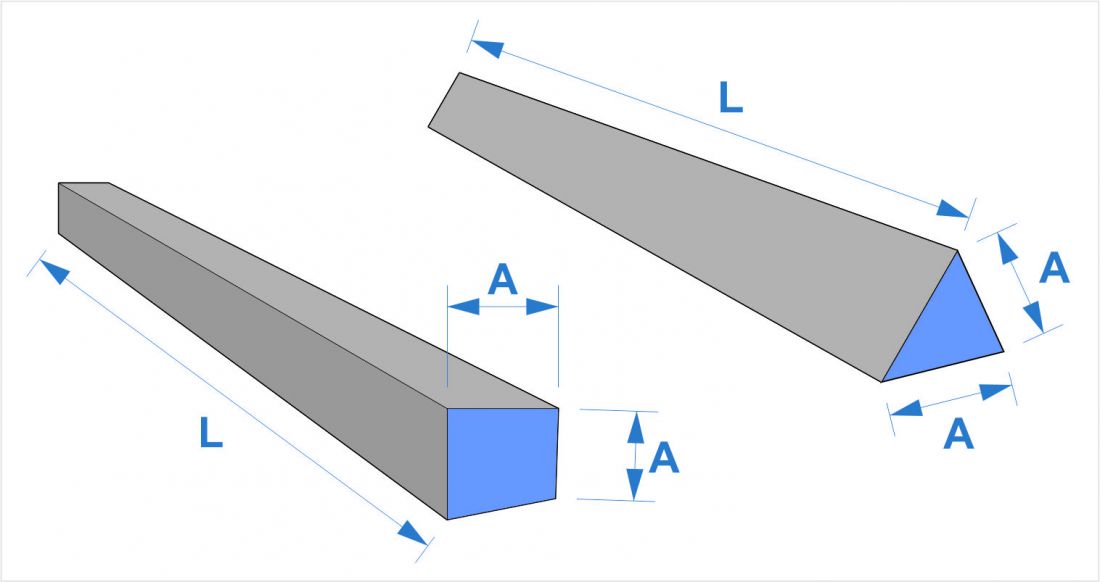

A | LENGTH | AREA | REINFORCEMENT BARS | WEIGHT |
|---|---|---|---|---|---|
| (mm) | L(mm) |
(mm2) |
kg/m | ||
| 20.20 | 200 | 3000/6000* | 40.000 | 4D13 | 96 |
| 25.25 | 250 | 3000/6000* | 62.500 | 4D13 | 150 |
| 20.20 Pretressed | 200 | 3000/6000* | 40.000 | PC Wire Ø7.1 | 96 |
| 25.25 Pretressed | 250 | 3000/6000* | 62.500 | PC Wire Ø7.1 | 150 |
| 28.28 | 280 | 3000/6000* | 34.000 | 3D13 | 83 |
| 32.32 | 320 | 3000/6000* | 44.300 | 3D13 | 108 |
