Cover U-Ditch
Type |

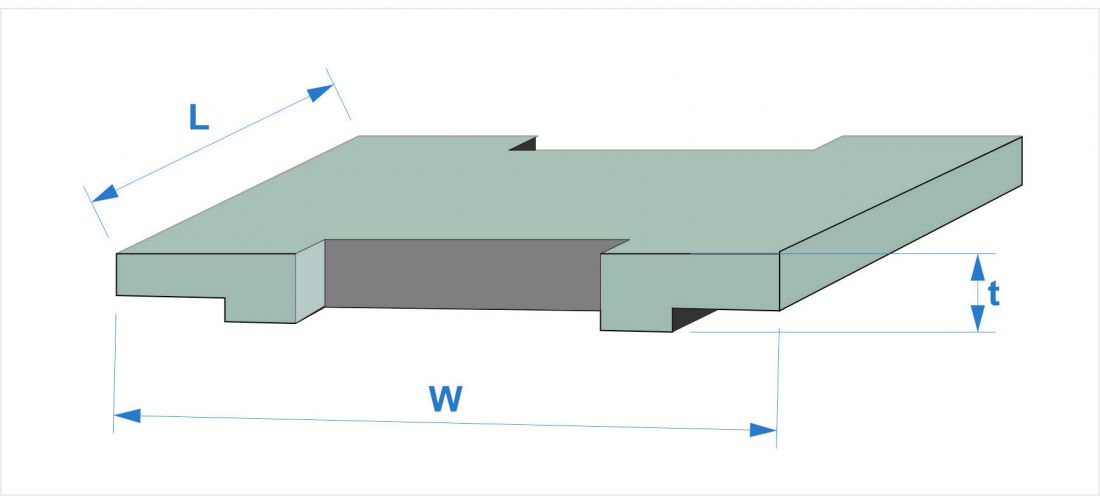

Dimension(mm) | Weight | P.Loads | ||
---|---|---|---|---|---|
t | W | L |
kg/pcs |
(ton) | |
Cover Uditeh LD WW = 30 | 65 | 420 | 600 | 37 | 4,5 |
Cover Uditeh LD WW = 40 | 80 | 530 | 600 | 60 | 4,5 |
Cover Uditeh LD WW = 50 | 80 | 630 | 600 | 71 | 3,5 |
Cover Uditeh LD WW = 60 | 100 | 730 | 600 | 104 | 3,5 |
Cover Uditeh LD WW = 80 | 100 | 950 | 600 | 136 | 3,0 |
Cover Uditeh LD WW = 100 | 120 | 1180 | 600 | 204 | 3,0 |
Cover Uditeh LD WW = 120 | 120 | 1380 | 600 | 239 | 2,5 |
Cover Uditeh LD WW = 140 | 140 | 1620 | 600 | 334 | 2,5 |
Cover Uditeh LD WW = 160 | 150 | 1860 | 600 | 404 | 2,5 |
Cover Uditeh LD WW = 180 | 180 | 2060 | 600 | 537 | 2,5 |
Cover Uditeh LD WW = 200 | 200 | 2260 | 600 | 654 | 2,5 |
Type |
Dimension(mm) | Weight | P.Loads | ||
---|---|---|---|---|---|
t | W | L |
kg/pcs |
(ton) | |
Cover Uditeh LD WW = 30 | 80 | 420 | 600 | 55 | 10,5 |
Cover Uditeh LD WW = 40 | 100 | 530 | 600 | 77 | 10,5 |
Cover Uditeh LD WW = 50 | 120 | 630 | 600 | 109 | 10,5 |
Cover Uditeh LD WW = 60 | 140 | 730 | 600 | 148 | 10,5 |
Cover Uditeh LD WW = 80 | 140 | 950 | 600 | 192 | 10,5 |
Cover Uditeh LD WW = 100 | 150 | 1180 | 600 | 255 | 10,5 |
Cover Uditeh LD WW = 120 | 180 | 1380 | 600 | 355 | 10,5 |
Cover Uditeh LD WW = 140 | 180 | 1620 | 600 | 429 | 10,5 |
Cover Uditeh LD WW = 150 | 200 | 1720 | 600 | 504 | 10,5 |
Cover Uditeh LD WW = 160 | 200 | 1860 | 600 | 612 | 10,5 |
Cover Uditeh LD WW = 180 | 210 | 2060 | 600 | 709 | 10,5 |
Cover Uditeh LD WW = 200 | 230 | 2260 | 600 | 842 | 10,5 |
